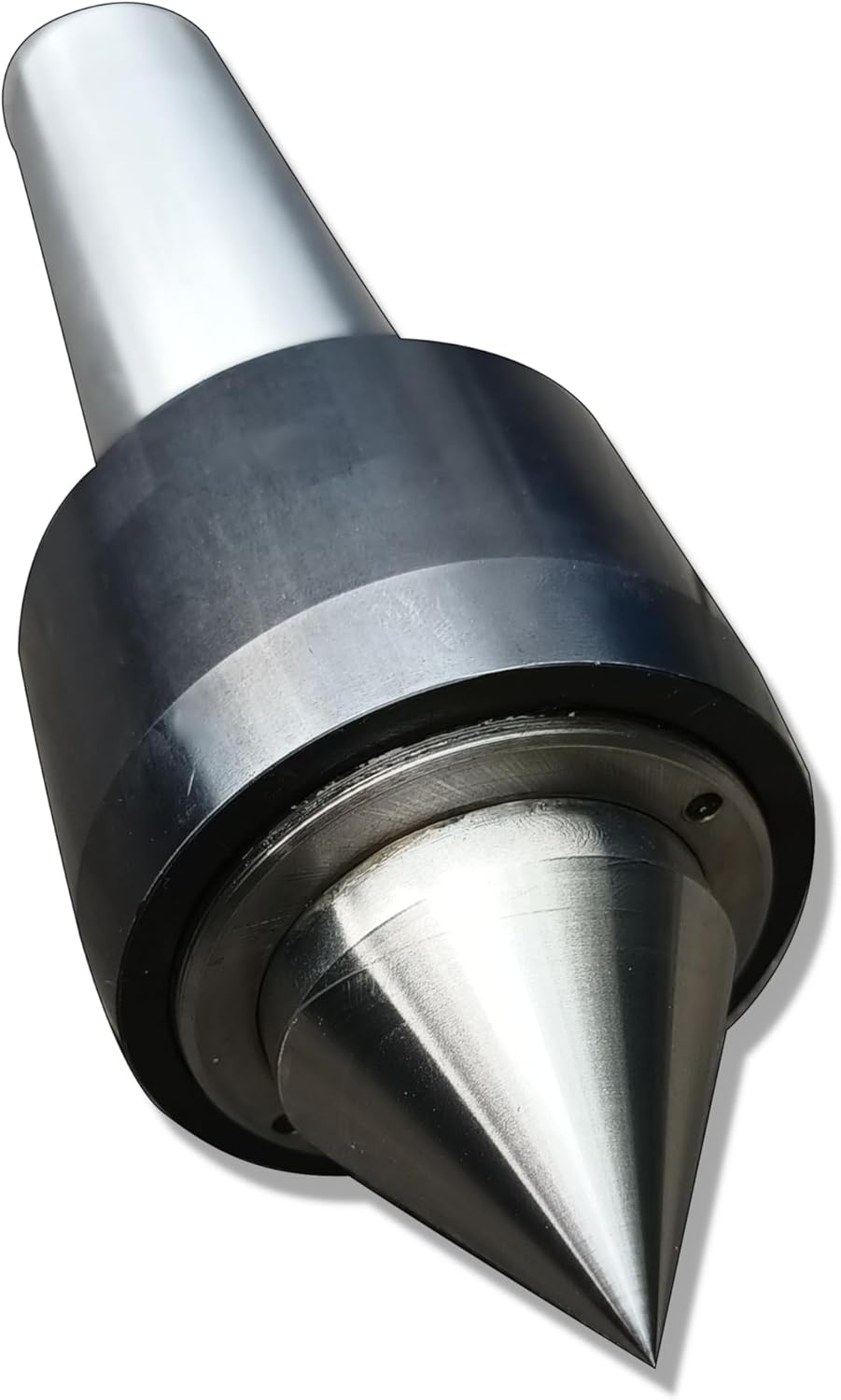

Heavy Duty Morse Taper 5 MT5 Live center A type for NC Lathes
4.3 (19 items)
Limited Time SaleUntil the end
07
07
26
US$132.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$88.00
Product details
| Management number | 211336327 | Release Date | 2026/04/04 | List Price | US$88.00 | Model Number | 211336327 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Center shaft is made of SUJ2(JIS) and hardened through vacuum heat treatment to provide higher HRC ±60° Morse Tape「 compIies with DIN806 standard. Center is fitted with dual ball bearing,thrust bearing and needle roller bearing assembly. Bearing is from Japan BAND Weight of working piece in load/kgs MAX / 2000KG(4,409lb).
- MT5 Morse Taper, manufactured according to the 'ISO 15433' standard.
- Material: The point section is made of SKD11 (JIS), vacuum heat-treated to a hardness of HRC 60°. The body is made of SCM440, hardened by salt bath quenching.
- It includes bearings made by a Japanese manufacturer.
- It offers a precision of 0.0005 and supports a maximum workpiece weight of 2000KG(4,409lb).
- For enhanced durability, we use Klüber lubricant (manufactured in Germany) which provides superior heat dissipation.
| Style | (Standard A-type) |
|---|---|
| Item Weight | 7.04 pounds |
| Part Number | KG-MT5-Center |
| Manufacturer | K-GUALDA MACHINE CO., LTD. |
| Item model number | MT5_243329 |
| Batteries Required | No |
| Product Dimensions | 12.2 x 5.1 x 5.5 inches |
| Item Package Quantity | 1 |
