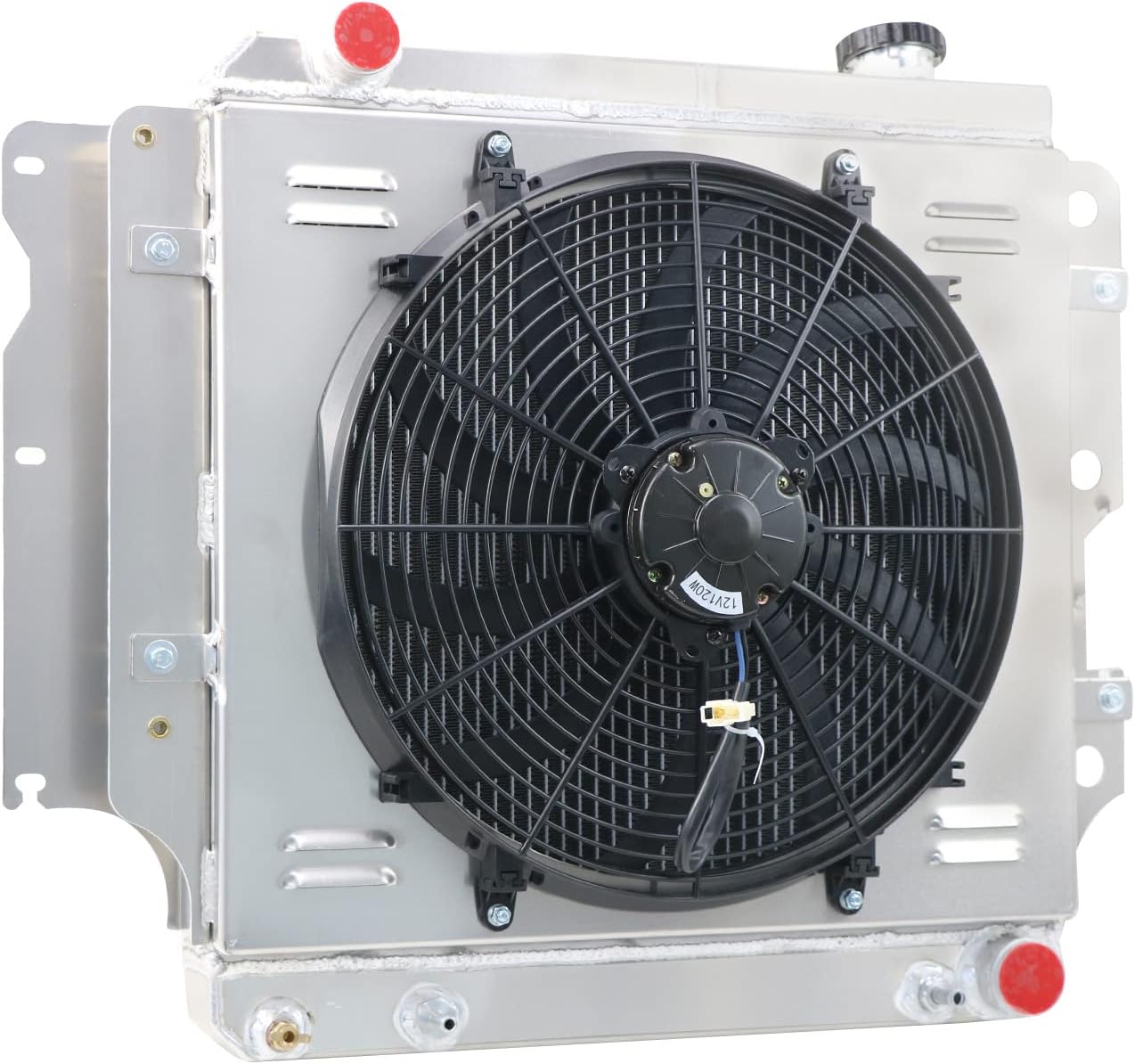

Full Aluminum Radiator for 1987-2006 Jeep TJ/YJ Wrangler Chevy V8 2.4 2.5 4.0 4.2 L4 L6 Engine, 3 Row Core Cooling Radiators with Electric Fan Shroud Thermostat Kit

Replacement For 1987-2006 Jeep Wrangler YJ TJ w/Chevy Engines Automatic and Manual Replacement For 1987-2004 Jeep Wrangler YJ GM chevy V8 Conversion Automatic and Manual Please Notice: To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Size, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part OEM/Substitute Numbers: 8101, SBR8101, CC8101, MC8101, CU8101, DPI8101, Q8101, TYC8101, RAD8101, SPTCU8101 Interchange Part Number: 8101, CC8101, MC8101, AE8101, EC8101 Radiator Specs: High Performance Racing Spec. 3-Row of tubes Core Racing Design Inlet Hose Connection: Driver Side Outlet Hose Connection: Passenger Side Bottom Hose Connection(inch): 1 3/4 (locate passenger Side) Upper Hose Connection(inch): 1 1/2 (locate Driver Side) Core Material: Full Aluminum Tank Material: All Aluminum Transmission Oil Cooler: Included Engine Oil Cooler: No Flow Type: Downflow Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Please Check the Size Before You Buy! Fan Details: 16inch Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 120 Wattage Thickness (in): 2.500 Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Amp Draw: 10 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature 180'F/165'F turn on/off temperature RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans Our Promise: If you don't like this 3 Row Core Full Aluminum Radiator, contact us and tell us your return reason, we'll instantly refund your money, no questions asked. It's our promise About product shipping: This aluminum radiator is big and easy got damaged during shipping, if the radiator or packing box arrived damaged, PLS contact us and offer us pics of damage details, we responsible for this If your radiator is not working, pls contact us and send us a clear pics of leaking details, we are willing to solve all problems for you Please check the vehicle fitment before you buy, Any Doubts, Email Us, Have a nice shopping!! NOTE: If need 3-row radiator ASIN is: B09YYQNT91 If need 4-row radiator ASIN is: B09YYQRKDH If need 4-row radiator with fan ASIN is: B09YYRM12V

• 【Vehicle Fitment】- Direct fit for 1987-2006 Jeep Wrangler TJ YJ Chevy Mopar V8 Conversion 2.4L 2.5L 4.0L 4.2 L4 L6 Engine Radiators 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
• 【Radiator Size】- Core Size: 18 1/2 Tall X 20 1/8 Wide x 1.74 Thickness ; Overall: 23 3/8 Tall X 25 3/4 Wide ; Bracket Mounted Across: 24 1/2 ; Bottom Hose Connection: 1 3/4 (locate passenger Side) ; Upper Hose Connection: 1 1/2 (locate Driver Side) ; Build-in Transmission Oil Cooler size 305xM16x1.5（Z）
• 【Premium Material】- Aircraft AA5052 grade aluminum and with a raw aluminum finish, 100% TIG Welded
• 【Brilliant Performance】- This Aluminum Radiator is at least 30%-45% more efficient than stock ones
• 【Simple Installation】- Perfect product fit, enabling fast and smooth installation. professional installation would be highly recommended
