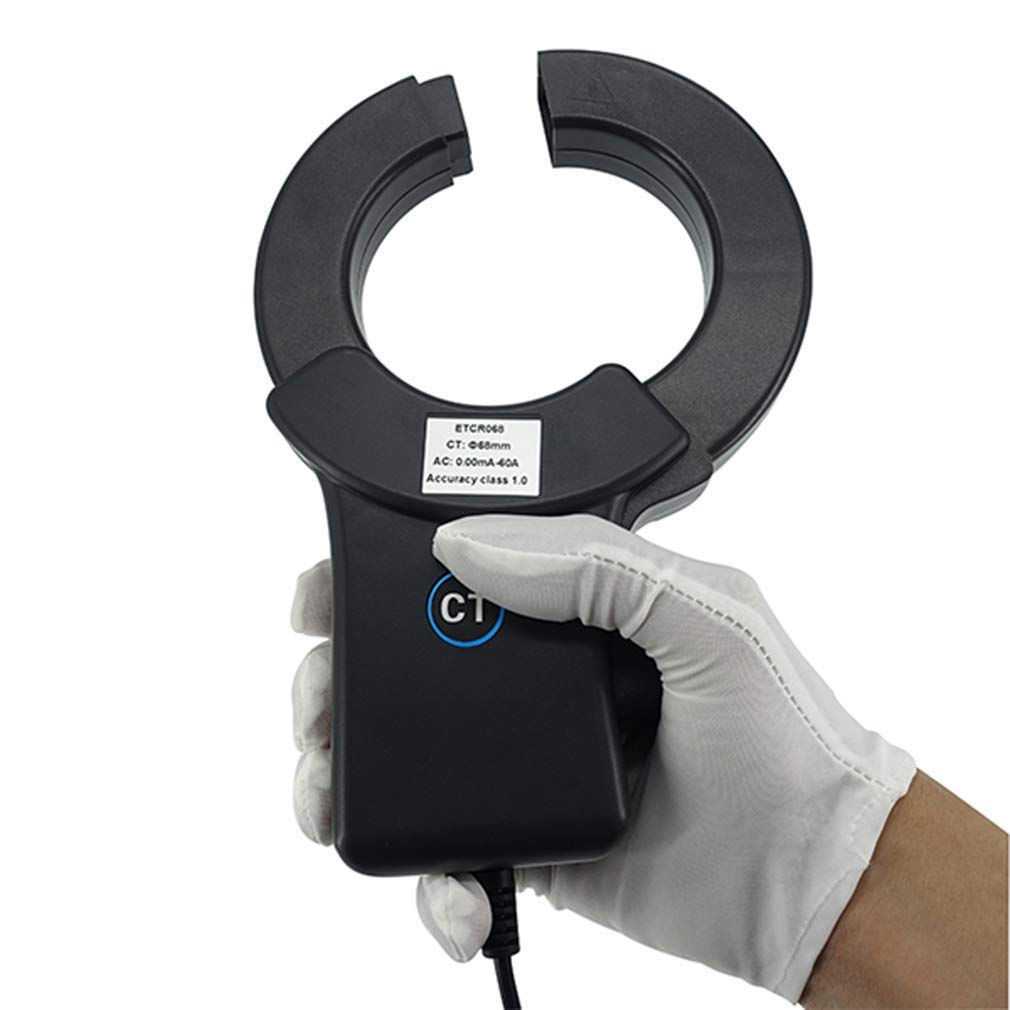

Clamp Current Sensor AC Leakage Current Meter Tester 0.00mA~60A Measurement Range with BNC Plug Output Interface CT Size 68mm

Main Function: 1：High accuracy AC leakage current、 higer harmonic current、phase、power energy、power、power factor measurement etc. 2：Range：0.00mA~60A AC 3：Turn Ratio：800：1 4：Resolution : 0.01mA 5：Accuracy Class : 1.0 6;Safety Class : CATⅢ600V 7:CT Structure ：Clamp 8:CT Size：Φ68mm Technical Specifications Function:High accuracy AC leakage current、 higher harmonic current 、phase、power energy、power、power factor measurement Range:0.00mA～60A Resolution:0.01mA Accuracy Class:1.0 Phase Error: ≤2° Turn Ratio::800:1 Reference Load:≤50Ω（0.5W） Clamp Size: Φ68mm Weight:530g Output Interface:Shielded wire 1.5m, wire terminal interface:BNC plug(Can be customized) Frequency:45Hz～100KHz Insulating Strength:AC 3700V/rms ( between the core and coil) Safety Clas:CATⅢ600V Output Method:Current sensing output Working Temperature:-15℃～50℃

• (1)High Accuracy Clamp leakage current sensor for AC leakage current, current, high harmonic current, phase, power, power factor and other detection.
• ❤❤(2)Measurement Range: 0.00mA~1000A, Resolution : 0.01mA,jaw size is Φ68mm.
• ❤❤(3)The sensor adopts the clamp-shaped structure, which can be measured without disconnecting the measured circuit. The permalloy iron core and double-layer shielding technology are used to ensure the accuracy and stability of the measurement.
• ❤❤(4)Non-contact measurement methods are adopted, and the operation is safe and simple.
• (5)can be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, and high-precision digital multimeters.
