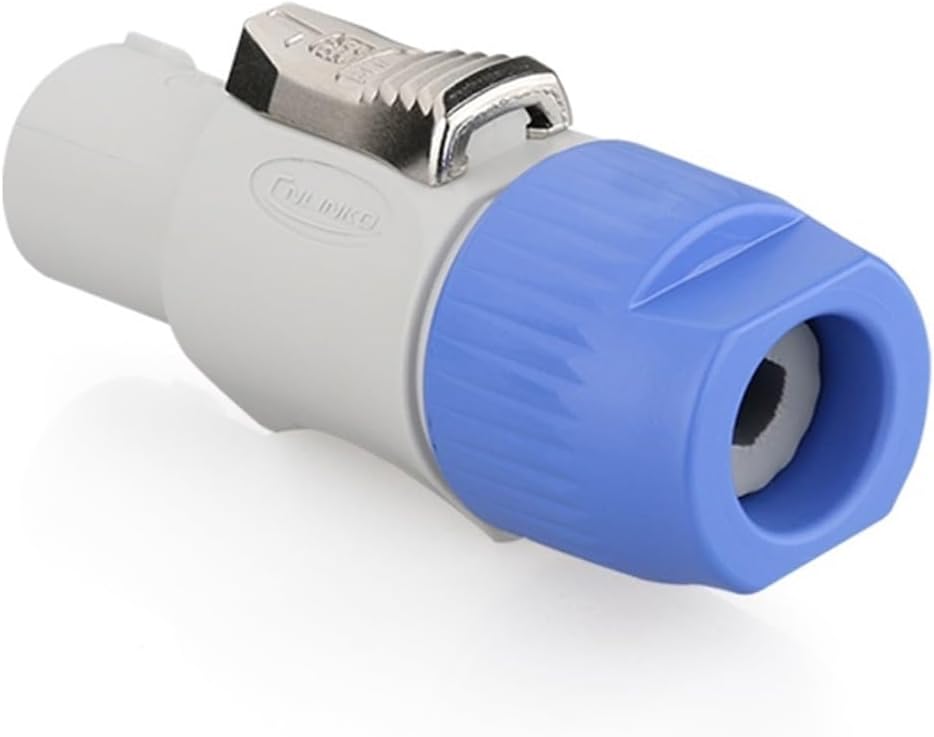

1Pcs Industrial Connector 3 Pin Powercon 20A Waterproof M24 Cable Electric Wire LED Automotive Power Connector(Plug D Only)

Plug ConnectorsIndustrial Connector 3 Pin Powercon 20A Waterproof M24 Cable Electric Wire LED Automotive Power ConnectorFeatures: 1.Latch design system 2.Protection level up is IP65 when connected 3.Panel mount installation 4.The Connnector uses a lock screw connection 5.Multiple color distinctions 6.Left and Right Sockets SpecificationsConnecting modeLatching Lock connectProtection levelIP65/IP67Cable specification2.5mm2 ~ 4mm2 /14~12AWGDiameter range8mm ~12mmContact diameter×Qty2.0×3Current rating(A)20ATemperature rise20A contact temperature below 3025A contact temperature below 4030A contact temperature below 50Operating voltage(AC.V.rms)500VWithstanding voltage(AC.V)1min2500VContact resistance<;3mInsulation resistance>500MDurability500 mating&unmating cyclesTemperature rating40C80CMethod of connecting cableSolderAssembly wireSolderingPrevent the combustion levelUL94V0MaterialInsulated partsHighperformance engineering plasticsHardware metalZinc alloypearl hard chromium)Contact pinCopper alloy(gold-plated 4U)SpringStainless steelSealingSilica gelMain characteristicsSealed against dust and fluid (IP65/IP67)Vibration resistance, impact resistance, stretching resistancesocket with coverApplication industriesStage equipment - The smart grid - ServerSolar energy equipment - Ship equipmentElectric power equipment - Vehicle equipmentCommunications equipment - Heavy machinery==========Hign-concerned Chemical : NoneModel Number : YF-24Cable specification : 2.5mm²~4mm²/14~12AWGDiameter range : Tolerance 8mm~12mmContact diameter *number : Tolerance 2.0*3Insulation resistance(Min.) : 500 m omegaContact resistance(Max.) : 3 m omegaCurrent rating : 20AOperating voltage (AC.V.rms) : 500VProtection Class : IP65Working temperature : -25 degrees Celsius~85 degrees CelsiusDurability(Min.) : 500 times

• Plug Connectors
• Industrial Connector: Designed for high durability and performance in demanding environments.
• 3 Pin Powercon 20A: Supports high current applications, ensuring stable power delivery.
• Waterproof M24 Cable Connector: Offers excellent protection against moisture, ideal for outdoor and harsh conditions.
• LED Automotive Power Connector: Perfect for automotive lighting and other electrical applications.
• Easy Installation: Simplifies the setup process, saving time and effort.
